EP-BWE XWE 시리즈 사이클로이드 기어박스

2. Five Key Product Advantages

What separates the EP-BWE XWE Series Cycloidal Gearbox from conventional speed reducers is not any single feature but a combination of engineering choices that compound into superior real-world performance. The following five advantages define why this unit is a preferred specification among procurement engineers across North America and beyond.

3. Working Principle of the Cycloidal Pin Gear Reducer

At the mechanical core of the EP-BWE XWE 사이클로이드형 감속기 lies a principle distinct from conventional involute gearing. The input shaft connects eccentrically to a bearing assembly that drives a cycloidal disc. As the input shaft rotates, the eccentric bearing causes the disc to orbit — not spin freely — within a fixed-pin ring gear. The disc's lobed perimeter engages sequentially with the ring pins distributed around the housing interior, and this rolling-without-sliding contact generates the reduction in rotational speed.

Because multiple lobes are in simultaneous mesh at any moment, torque is distributed across several contact points rather than concentrated at a single tooth pair. This is the mechanical origin of the EP-BWE XWE Cycloidal Gearbox's exceptional shock-load resistance. Roller pins embedded through the cycloidal disc transfer the orbital motion to an output disc, which converts epicyclic motion into smooth, continuous rotation at the output shaft — all without any relative sliding between the contact surfaces.

In the double-stage configuration of this series, a second cycloidal stage is stacked in series with the first, multiplying the speed reduction ratio exponentially. The coaxial arrangement of input and output shafts — a defining characteristic of cycloidal gearbox design — means the unit can be integrated directly inline with a motor shaft, eliminating the need for offset belt or chain drives. This inline architecture also improves dynamic balance, which in turn reduces bearing fatigue and extends the mean time between overhaul (MTBO) intervals.

The quench-and-temper heat treatment applied to all rotating components ensures surface hardness sufficient to resist abrasive wear while retaining a tough core that withstands impact without brittle fracture. GB 2# Lithium grease (or equivalent Mobilux EP 2) provides boundary lubrication at all cycloidal contact interfaces, maintaining a protective film even under the heavy preloads typical of high-ratio reduction applications.

4. Materials & Material Specifications

Material selection for the EP-BWE XWE 사이클로이드 기어 모터 drive series reflects decades of accumulated field data from heavy industrial deployments. Every material choice is deliberate — balancing hardness, toughness, machinability, and corrosion resistance against the specific stress environment each component must endure over a service life measured in years rather than months.

The combination of GCr15 bearing steel for the cycloidal disc and ring pins — both finished to fine-ground tolerances after heat treatment — creates a contact pair with surface hardness sufficient to resist abrasive wear while the tempered core maintains impact resistance. This dual characteristic (hard surface, tough core) is what enables the cycloidal reducer gearbox to tolerate the shock loads common in mining, construction, and heavy process industries without progressive tooth damage.

5. 적용 시나리오

그만큼 cycloidal gearbox automation capability of this series, combined with its wide ratio range and multi-mounting flexibility, makes it one of the most broadly deployed drive units in industrial settings. The following sectors represent primary end-use environments where the EP-BWE XWE Series Cycloidal Gearbox delivers consistent, documented performance.

6. Regulatory Compliance & International Standards

Procurement teams sourcing a cycloidal gearbox supplier USA or internationally must verify that the selected drive unit meets the regulatory framework applicable to their facility and target market. The EP-BWE XWE Series is engineered with reference to the following mandatory and voluntary standards:

Facilities operating in the United States food and pharmaceutical sectors should additionally verify compliance with FDA 21 CFR Part 110 (Current Good Manufacturing Practice in Manufacturing, Packing, or Holding Human Food) when specifying this unit for direct-contact or near-contact food production lines. The sealed lubrication system and cast-iron housing support compliance but the end-user bears responsibility for site-specific risk assessment and hygiene documentation.

7. 회사 소개

We are a specialized manufacturer of industrial power transmission solutions with deep engineering roots in cycloidal and planetary gear technology. Our engineering team carries decades of cumulative experience in cycloidal gearbox design — from entry-level compact units used in servo positioning systems to large-frame double-stage foot-mounted models specified for continuous-duty mining conveyors. We support cycloidal gearbox custom order manufacturer requirements, working from customer-supplied CAD drawings or application specifications to produce non-standard ratio, shaft configuration, or housing material variants.

Our quality system is aligned with ISO 9001:2015, and outgoing inspection includes dimensional verification, backlash measurement, efficiency run-in testing, and noise/vibration assessment prior to shipment.

작업장

8. Installation & Commissioning Guidance

Correct installation is as critical to long-term gearbox performance as the unit's own engineering. The following installation sequence applies to the EP-BWE XWE double-stage foot-mounted configuration and should be followed in full during initial commissioning as well as after any scheduled overhaul.

Before beginning, verify that the motor frame dimensions, shaft diameter, and keyway dimensions are dimensionally compatible with the gearbox input interface. Clean all mating surfaces — motor locating boss, input shaft, and reducer socket — with appropriate solvent to remove residual rust preventative coating. This step ensures full concentricity at the input interface, which is the primary driver of early bearing failure when omitted.

When connecting the motor to the gearbox, ensure the output shaft of the reducer and the motor input shaft are coaxial and that the outer flanges are parallel. Never use a hammer to drive shaft connections — impact loads applied axially or radially will damage internal bearings and cycloidal disc pin bores. Use only the specified tightening sequence: install mounting bolts finger-tight at opposing positions before torquing to specification using a calibrated torque wrench, following the cross-pattern sequence shown in the installation manual. The motor shaft keyway must be perpendicular to the tightening bolt axis before the final clamp-ring engagement.

After installation, perform a no-load run of at least 30 minutes and verify that operating temperature rise, noise level, and shaft vibration fall within the specified limits before applying process load. Any anomalous temperature rise above 60°C over ambient, or noise above 70 dB(A), should be investigated before full-load operation commences.

Related Products & System Compatibility

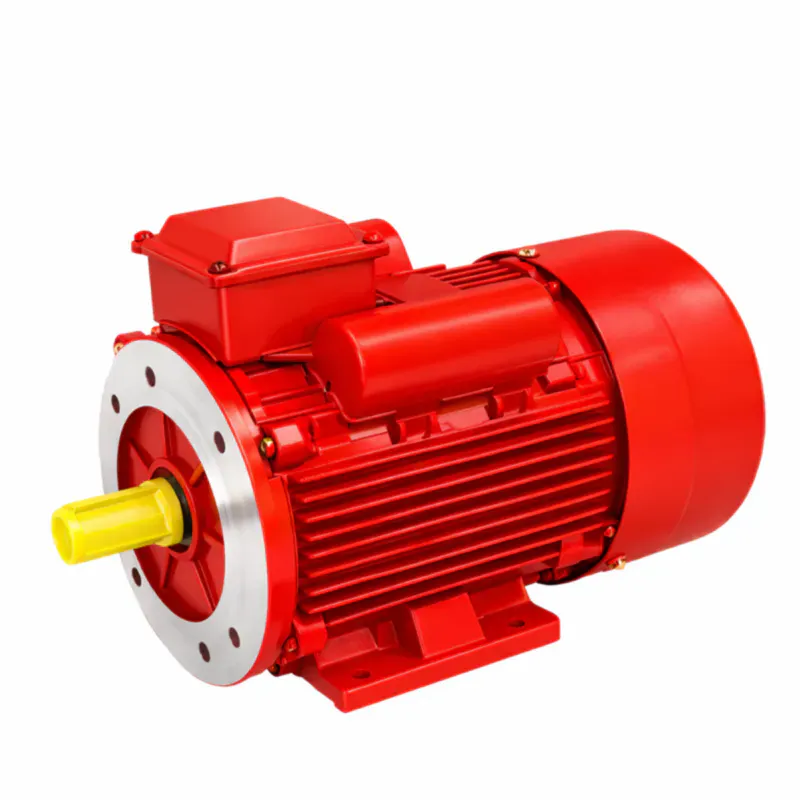

Our manufacturing capability extends beyond the 사이클로이드 기어박스 itself. For customers building complete drive system assemblies, we supply compatible input and output components designed for direct integration — eliminating the adapter and interface engineering effort typically required when sourcing from multiple vendors.
